ATK Engines HP89CBLK High-Performance Small Block Chevy 350ci Crate Engine – 390 HP / 420 TQ / Black
Free Shipping$3,857.95
High-Performance Crate Engine
- Small Block Chevy 350 ci.
- 390 HP/420 ft.-lbs TQ
- Black
- Chevrolet Embossed
- Includes:
- Mid Dress Engine Build
- Fuel Pump
- Carburetor
- Spark Plug Wires
- Spark Plugs
- Valve Covers
- Air Cleaner
Did you like this product? Add to favorites now and follow the product.
Confirm your vehicle, VIN and application before ordering. Call (478) 379-2400 or ask about fitment.
Shipping details | Returns & refunds
Description

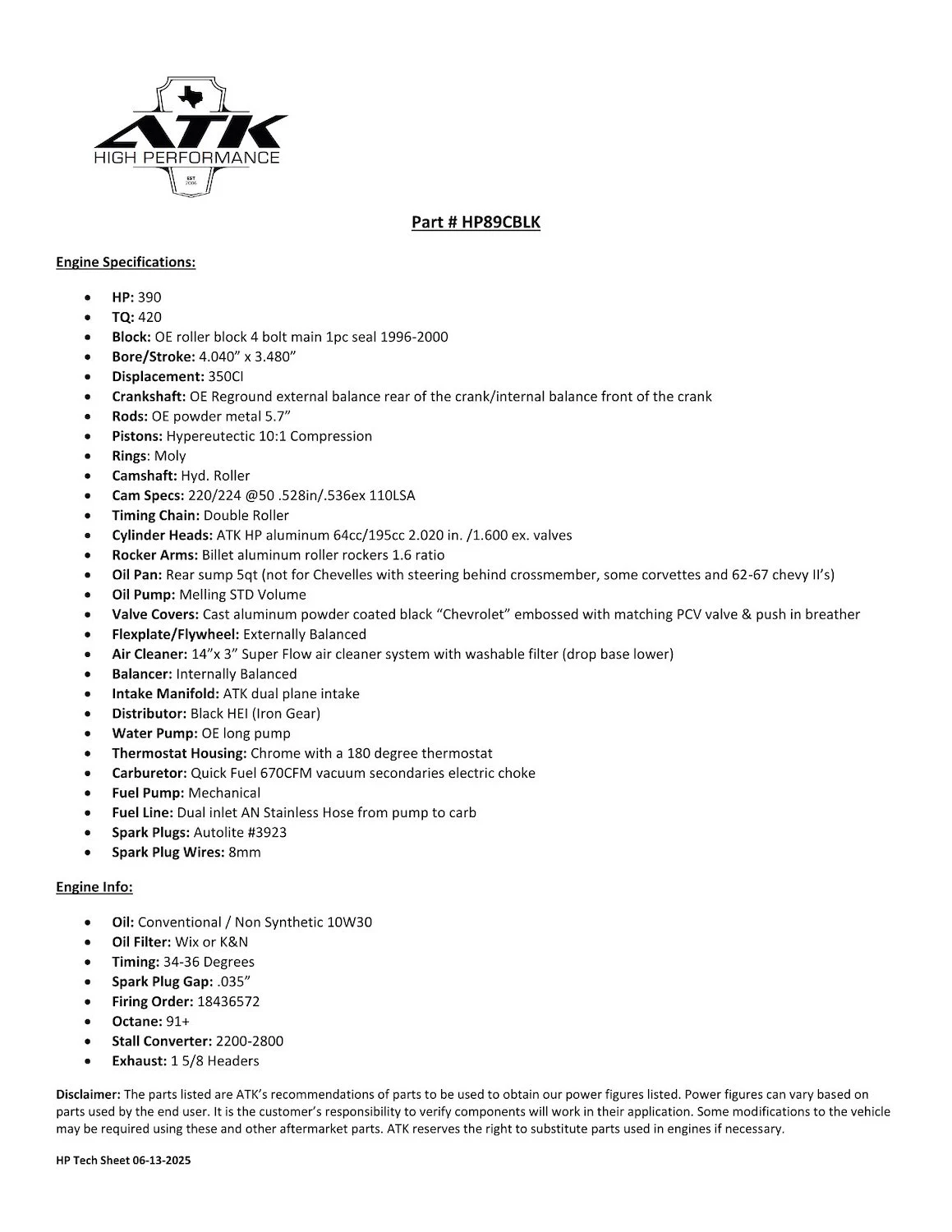

ATK Engines HP89CBLK Engine Features:
- Horsepower: 390
- Torque: 420
- Block: 1996-2000 OE roller block, 4-bolt main, 1-piece seal
- Bore/Stroke: 4.040 in. x 3.480 in.
- Displacement: 350ci
- Crankshaft: OE reground; external balance rear of crank/internal balance front of crank
- Rods: OE powder metal, 5.700 in.
- Pistons: Hypereutectic, 10:1 compression
- Rings: Moly
- Camshaft: Hydraulic roller
- Cam Specs: 220/224 @ .050; .528 in./.536 in. lift; 110 LSA
- Timing Chain: Double roller
- Cylinder Heads: ATK high-performance aluminum with 2.020 in. intake / 1.600 in. exhaust valves
- Rocker Arms: Billet aluminum roller rockers, 1.6 ratio
- Oil Pan: Rear sump 5qt
- Oil Pump: Melling standard volume
- Valve Covers: Cast aluminum, powder-coated black, “Chevrolet” embossed, with PCV valve and push-in breather
- Flexplate/Flywheel: Externally balanced – Pioneer #FRA-159
- Air Cleaner: 14 in. x 3 in. Super Flow air cleaner system with washable filter
- Balancer: Internally balanced – PowerBond #PB1046-N
- Intake Manifold: ATK dual-plane intake
- Distributor: Black HEI (iron gear)
- Water Pump: OE long pump
- Carburetor: Quick Fuel 680CFM vacuum secondary electric choke #HR-680
- Fuel Pump: Holley mechanical 110GPH #12-327-11
Engine Information
- Recommended Oil: Conventional / non-synthetic 10W30
- Oil Filter: Wix or K&N
- Timing: 34-36 degrees
- Octane: 91+
- Stall Converter: 2200-2800 RPM
- Exhaust: 1 5/8 in. headers
Important: Verify compatibility with your vehicle before installation. Components or vehicle modifications may be required.
Emissions Notice: This part is legal only for sale and use on uncontrolled (non-emissions controlled) vehicles or vehicles used solely for closed-course competition racing.
| Part Type | Engine |
|---|---|
| Product Line | ATK HP Crate Engines Small Block Chevy 350 ci / 390 HP / 420 FT.-LBS. |
| Air Cleaner Included | Yes |
| Assembled | Yes |
| Carburetor Included | Yes |
| Cylinder Head Material | Aluminum |
| Cylinder Heads Included | Yes |
| Distributor Included | Yes |
| Engine Balance | External/Internal |
| Engine Block Material | Cast Iron |
| Engine Displacement | 350 ci |
| Engine Type | High-Performance Crate Engine |
| Flexplate Included | No |
| Flywheel Included | No |
| Harmonic Balancer Included | Yes |
| Intake Manifold Type | Carbureted |
| Oil Pan Included | Yes |
| Package Depth | 40.00 |
| Package Height | 37.00 |
| Package Width | 27.00 |
| Part Category | Performance Parts |
| Part Fitment | Semi Universal |
| Rear Main Seal Style | 1-piece |
| Shipping Weight | 460.00 |
| Spark Plug Wires Included | Yes |
| Spark Plugs Included | Yes |
| Throttle Body Included | No |
| Timing Cover Included | Yes |
| Valve Covers Included | Yes |
| Vendor Part Number | HP89CBLK |
| Water Pump Included | Yes |
Use or break-in oil or conventional (non-synthetic) 10w30 oil with zinc additive for the first 500 miles of operation. Do not drive for long periods at any single speed, always vary your speed. Do not tow a trailer or put other heavy loads on the vehicle. It is best to avoid long periods of idling during this period. Check the engine oil and coolant levels daily.
